Industrial Welding Assembly Table

An Industrial Welding Assembly Table is a vital piece of equipment in industrial manufacturing settings,specifically designed to facilitate the welding and assembly processes of various components.Here's a comprehensive introduction:

1.Key Features

Heavy-duty Construction:Industrial welding assembly tables are built to withstand heavy loads and harsh working conditions.They are typically made from high-strength materials such as thick steel plates or robust steel frames.The frames are often reinforced with additional bracing or cross-members to ensure maximum stability and rigidity,capable of supporting large and heavy workpieces during welding and assembly operations.

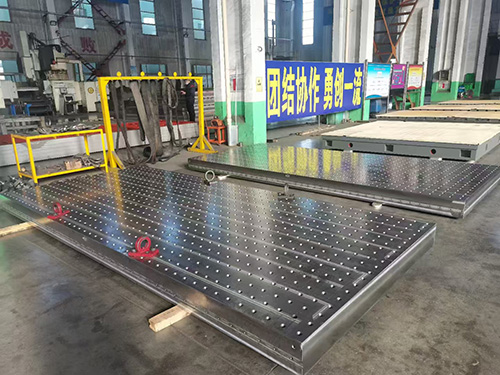

Large Work Surface:These tables usually have a spacious work surface to accommodate multiple components simultaneously.The size can vary widely depending on the specific industrial requirements,ranging from a few square feet for smaller-scale operations to large tables that can handle very large or complex assemblies.The large surface area allows for efficient organization of workpieces,tools,and fixtures.

Modular and Adjustable Design:Many industrial welding assembly tables feature a modular design,enabling users to customize the table according to their specific needs.Components such as work surfaces,legs,and fixture mounts can be easily added,removed,or adjusted.Some tables also have adjustable height mechanisms,allowing operators to set the table at a comfortable working height,which is especially useful for different types of welding and assembly tasks and for accommodating operators of varying heights.

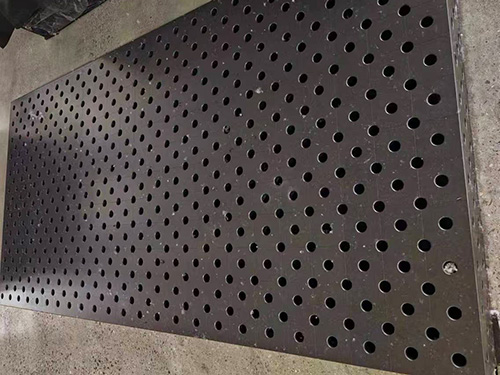

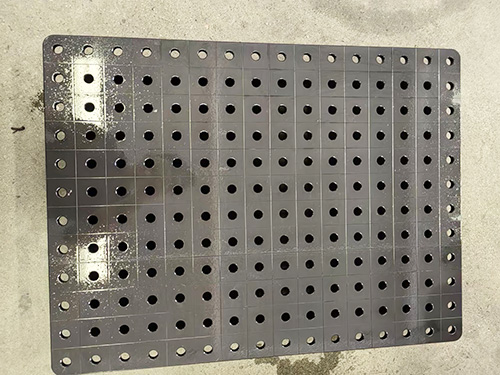

Precision and Alignment:To ensure accurate welding and assembly,these tables are engineered with high precision.The work surface is often machined to a high degree of flatness,and grid patterns,T-slots,or hole arrays are incorporated to help with the precise positioning of workpieces and fixtures.This precision is crucial for maintaining the quality and dimensional accuracy of the final assembled products.

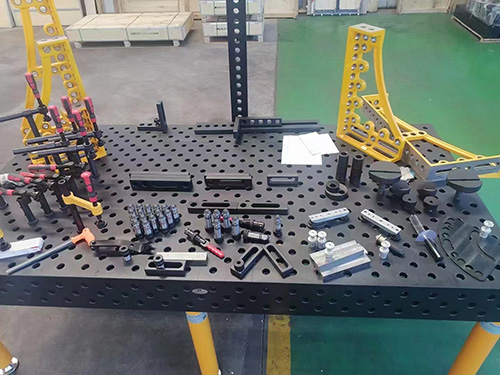

Integrated Fixture and Tool Storage:To keep the work area organized and efficient,industrial welding assembly tables may come with integrated storage solutions for fixtures,tools,and accessories.This can include drawers,shelves,or dedicated slots for holding clamps,wrenches,and other essential items,reducing the time spent searching for tools and improving overall productivity.

2.Construction and Materials

Materials:

Steel:High-quality carbon steel or alloy steel is the most commonly used material for the construction of industrial welding assembly tables.Carbon steel offers good strength and affordability,while alloy steels like manganese steel or chromium-molybdenum steel can provide enhanced properties such as increased hardness,wear resistance,and toughness,making them suitable for more demanding applications.

Cast Iron:In some cases,cast iron may be used for the work surface or certain components of the table.Cast iron has excellent vibration damping properties,which can be beneficial in reducing the effects of welding-induced vibrations on the quality of the work.It also has good wear resistance and can maintain its flatness over time.

Surface Treatments:To protect the table from corrosion and wear,the surfaces may be treated with processes such as powder coating,galvanizing,or painting.These treatments not only enhance the durability of the table but also make it easier to clean and maintain.

Construction:The table is typically assembled using welding or bolted connections.Welded joints provide a strong and rigid structure,while bolted connections offer the advantage of easier disassembly and modification.The work surface is often attached to the frame using high-strength fasteners or welding techniques to ensure a secure and stable connection.

3.Applications

Manufacturing of Heavy Machinery:In industries such as construction equipment manufacturing,mining machinery production,and agricultural machinery fabrication,industrial welding assembly tables are used to assemble large and complex components.For example,they can be used to weld and assemble the frames,booms,and other structural parts of excavators,cranes,and tractors.

Shipbuilding:Shipyards rely on industrial welding assembly tables for the construction of various ship components,including hull sections,bulkheads,and decks.These tables provide a stable platform for welding and aligning large steel plates and structural members,ensuring the structural integrity of the vessel.

Steel Structure Fabrication:In the construction industry,industrial welding assembly tables are essential for fabricating steel structures such as buildings,bridges,and towers.They are used to assemble steel beams,columns,and trusses,allowing for precise alignment and welding to meet the engineering specifications of the project.

Automotive and Aerospace Sub-assembly:Although automotive and aerospace manufacturing often use specialized tables,industrial welding assembly tables can also be used for sub-assembly tasks.They can be employed to weld and assemble smaller components or sub-assemblies that will later be integrated into the final vehicles or aircraft.

4.Maintenance and Care

Cleaning:Regularly clean the table surface to remove welding slag,metal shavings,and other debris.This can be done using a wire brush,compressed air,or a suitable cleaning solution.Keeping the surface clean helps to prevent scratches and damage that could affect the precision of future work.

Inspection of Fixtures and Fasteners:Periodically inspect the fixtures,clamps,and fasteners on the table to ensure they are in good condition.Loose or damaged fixtures can lead to inaccurate positioning of workpieces,so any issues should be addressed promptly by tightening or replacing them.

Lubrication of Moving Parts:If the table has moving parts such as adjustable legs or sliding mechanisms,lubricate them regularly to ensure smooth operation.Use a suitable lubricant according to the manufacturer's recommendations to reduce friction and wear.

Structural Integrity Check:Conduct regular inspections of the table's structure for any signs of damage or deformation.Check the frame,legs,and joints for cracks,loose connections,or signs of fatigue.If any structural issues are detected,take appropriate measures to repair or reinforce the table to maintain its stability and safety.
