Fixing Element

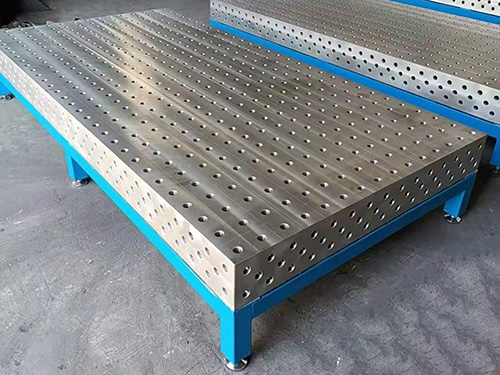

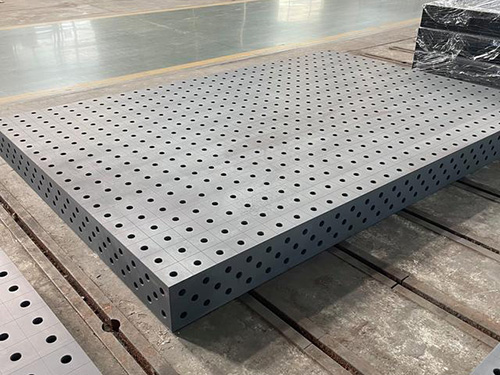

On a 3D welding platform,Fixing Elements are the core components that ensure precise positioning and stable clamping of workpieces,and their performance directly affects welding accuracy and efficiency.The following is an introduction to common Fixing Elements and their characteristics:

Positioning pin:It is usually made of high-strength alloy steel and has a high-precision cylindrical shape.By matching with the positioning holes on the platform,it achieves precise positioning of the workpiece in three-dimensional space.It can be quickly inserted and removed,commonly used in scenarios that require frequent replacement of workpieces,ensuring that the positioning error is controlled within a very small range each time.It is particularly suitable for aerospace and automotive parts welding operations that require extremely high precision.

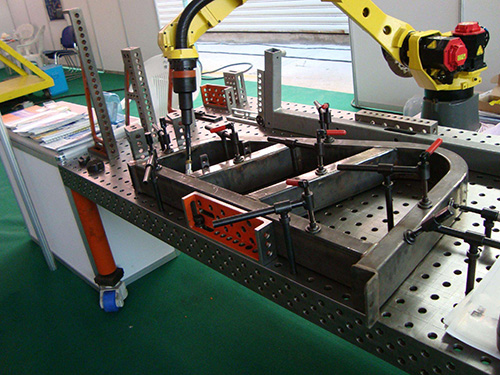

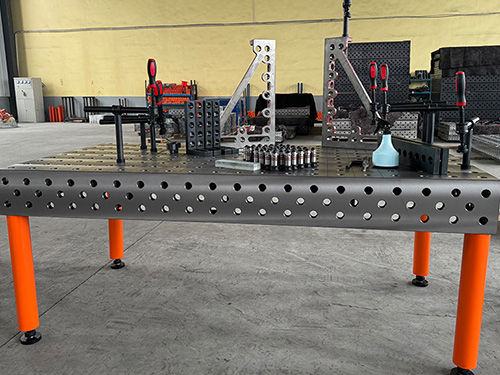

Quick clamp:It has the characteristics of easy operation and quick clamping.Through the principle of lever or eccentric wheel,it can generate strong clamping force in a short time.Without the need for additional tools,the workpiece can be quickly fixed or released by manual operation,greatly reducing clamping time.Its diverse structural forms,such as vertical,horizontal,elbow joint,etc.,can adapt to workpieces of different shapes and sizes,and are widely used in various welding production lines.

Magnetic suction cup:Using high-strength permanent magnets or electromagnetic principles to generate suction force,it can quickly attach ferromagnetic materials to workpieces.When welding thin plates or workpieces with uneven surfaces,magnetic suction cups can provide uniform suction force,avoiding deformation of the workpiece due to uneven local forces.And the adsorption and release operations are simple,just turn on or off the magnetic switch,which can effectively improve welding efficiency,commonly used in industries such as steel structures and hardware processing.

T-shaped groove pressure plate:Used in conjunction with the T-shaped groove on the 3D welding platform,the pressure plate is fixed in the T-shaped groove with bolts to compress the workpiece.The length,width,and thickness of the pressure plate can be selected according to actual needs,and the clamping position and force can be flexibly adjusted.Suitable for fixing large or irregularly shaped workpieces,it plays an important role in fields such as engineering machinery and shipbuilding.

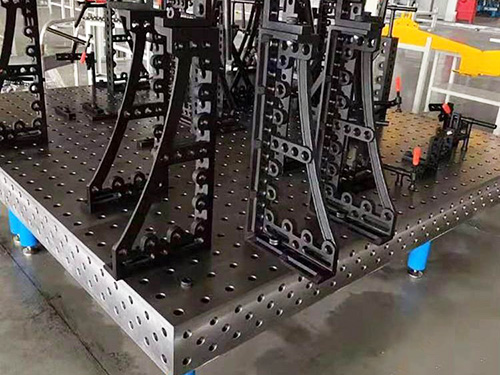

Universal adjustable support seat:Its base can be fixed with a three-dimensional welding platform,and the top has a multi angle adjustable support head.By rotating,tilting and other operations,the workpiece can be supported and positioned in all directions,especially suitable for welding complex curved workpieces.The ability to adjust the position and angle of the workpiece in multiple directions ensures stability during the welding process and improves welding quality.
