Three dimensional flexible cast iron welding tooling platform

In modern industrial production,welding technology,as the core technology of metal connection,directly affects product performance and enterprise competitiveness in terms of efficiency and quality.The three-dimensional flexible cast iron welding fixture platform,with its unique design and excellent performance,has become a key innovative equipment in the welding field,reshaping the traditional welding operation mode.

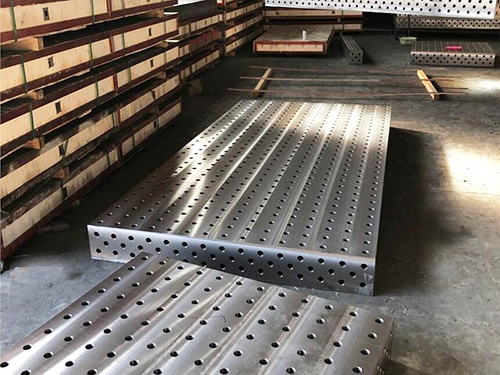

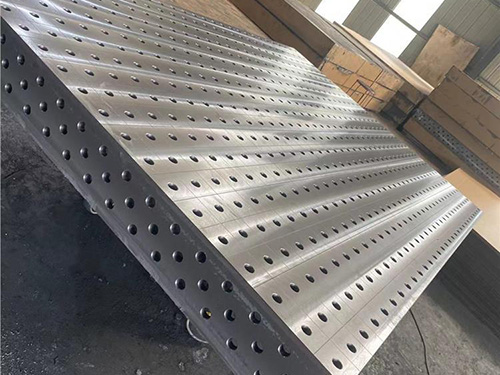

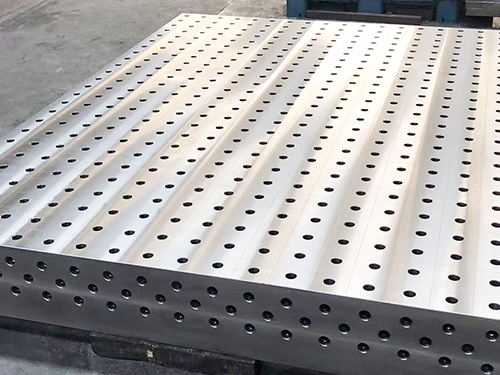

Three dimensional flexible cast iron welding tooling platform is based on high-quality cast iron as the basic material,and common gray cast iron such as HT200-HT00 endows the platform with inherent powerful characteristics.High rigidity ensures that the platform remains stable when subjected to heavy workpieces and welding stresses,effectively avoiding deformation;Excellent vibration damping performance,capable of quickly absorbing vibrations generated during the welding process,providing a stable environment for welding operations;Good wear resistance ensures that the platform can maintain high precision even after long-term high-frequency use.In terms of structural design,the platform adopts a modular concept,with multiple working surfaces covered with precision machined hole systems or T-shaped groove structures.These standard spacing holes and slots,like precise"positioning codes,"can adapt to various positioning pins,fixtures,and other components,enabling precise positioning and rapid clamping of workpieces in three-dimensional space,greatly improving the flexibility and efficiency of welding operations.

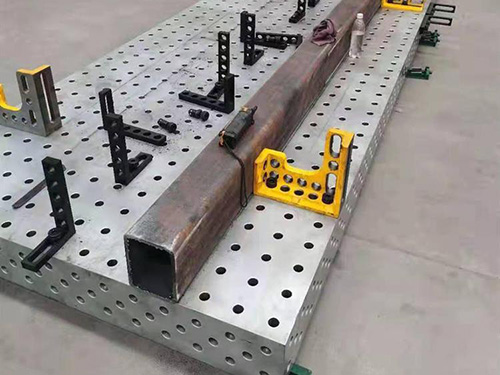

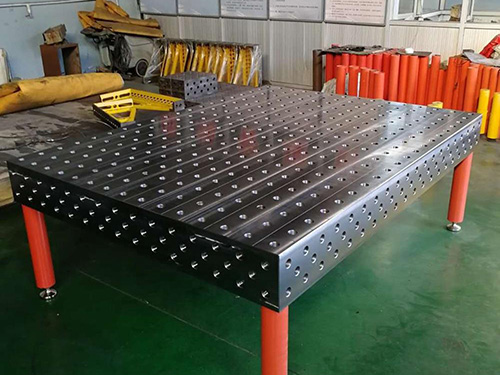

The functional advantages of this tooling platform are significant.In terms of precise positioning,through the coordination of holes and positioning components,the workpiece error can be controlled within a very small range,ensuring the welding accuracy of complex structural components.Taking the welding of automobile engine cylinder blocks as an example,precise positioning can ensure the accurate positioning of installation holes for each component,laying the foundation for subsequent assembly.The flexible clamping system is a major highlight,as various types of fixtures can be freely combined and adjusted according to the material,shape,and size of the workpiece.Whether it is precision welding of thin sheet metal or strong fixation of heavy steel,they can easily handle it.In addition,some platforms are equipped with adjustable components such as height adjustable legs and movable clamping arms,which further expand the applicability of the platform and meet the requirements of different height operations and special angle welding.

In practical applications,the three-dimensional flexible cast iron welding fixture platform demonstrates strong adaptability.In the automotive manufacturing industry,from the overall welding of the body frame to the assembly of components,platforms help achieve efficient and precise production,improving the strength and stability of the body;In the aerospace field,when faced with high-precision and high reliability requirements for aircraft components,the stability performance ensures that the welding quality meets strict standards,ensuring flight safety;In the mechanical manufacturing industry,whether it is the structural welding of large mechanical equipment or the processing of precision parts,platforms can provide solid support for welding processes.Compared with traditional welding fixtures,the three-dimensional flexible cast iron welding fixture platform has obvious advantages.Traditional tooling often has a single function and strong specificity,making it difficult to adapt to diverse production needs,and replacement and adjustment are time-consuming and laborious.With its modular and flexible design,the platform can quickly switch tooling modes,significantly reducing production preparation time,lowering tooling costs,and significantly improving production efficiency and economic benefits.

Although the three-dimensional flexible cast iron welding fixture platform has outstanding advantages,maintenance and upkeep should also be taken into account during use.Regularly clean the welding slag and debris in the hole groove to prevent them from affecting the positioning accuracy;To prevent the platform from being subjected to severe impacts and overload usage,in order to protect the integrity of the cast iron structure;Regularly lubricate and inspect moving parts to ensure their flexibility and reliability.Through scientific and reasonable maintenance,the service life of the platform can be extended and its outstanding performance can be continuously demonstrated.

With the arrival of the Industry 4.0 era,the transformation of manufacturing towards intelligence and automation is accelerating,and the D flexible cast iron welding fixture platform is also constantly developing.In the future,it will be deeply integrated with robot welding and intelligent control systems to achieve automated and precise control of the welding process;At the same time,continuous breakthroughs are being made in material research and process improvement,further enhancing platform performance and applicability,injecting a continuous stream of power into the advancement of welding processes to a higher level,and playing a more critical role in modern manufacturing.
