Hot Formed Stamping Parts

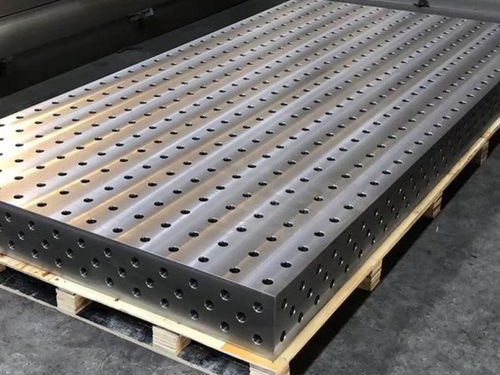

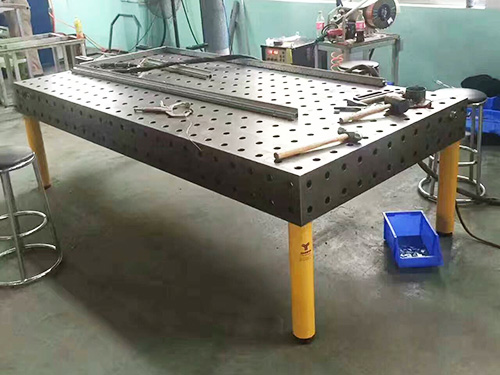

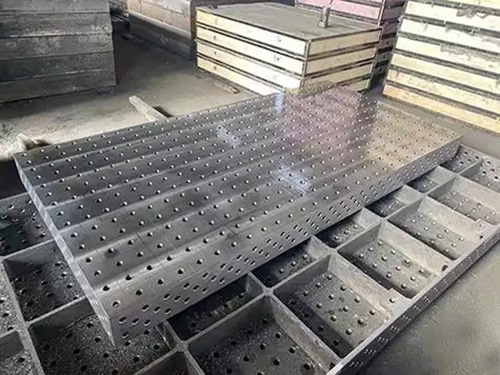

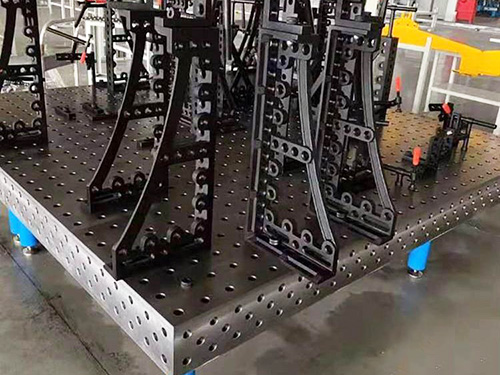

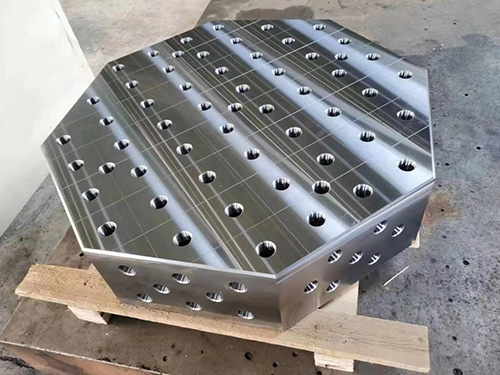

The Hot Formed Stamping Parts has high bearing capacity and stable rigidity. Its five surfaces are machined with regular holes and engraved with mesh lines. The welding platform can be extended and combined conveniently. The expanded standard table can be directly connected with modular positioning and clamping. In the process of installing, adjusting and positioning the workpiece, the general functions of the flexible three-dimensional combined welding tooling system are displayed, especially in the application of large workpiece.

The three-dimensional flexible platform is used for welding, machining and workpiece detection. For example: steel structure, various vehicle body manufacturing, bicycle and motorcycle manufacturing, engineering machinery, frame and box, pressure vessel, robot welding, sheet metal processing, metal furniture, equipment assembly, industrial pipeline (flange), detection system, electrical machinery (high voltage switch, transformer, power control, etc.).

The main functions of 3D flexible platform using 3D flexible welding fixture are as follows:

(1) Accurate positioning and clamping can reduce or even cancel the blanking and scribing work. The dimensional deviation of the product is reduced, and the accuracy and interchangeability of the parts are improved.

(2) The welding deformation is prevented and reduced.

(3) So that the workpiece is in the welding position, the weld formability is good, the process defects are significantly reduced, and the welding speed is improved.

(4) The heavy work of positioning, clamping and workpiece turnover when manually assembling parts is replaced by mechanical devices, which improves the working conditions of workers.

(5) The scope of application of process methods can be expanded, and the comprehensive development of production mechanization and automation of welded structures can be achieved.
