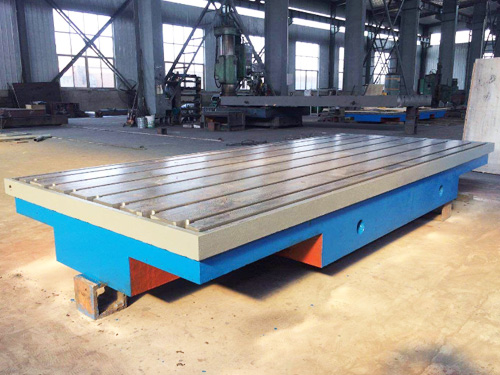

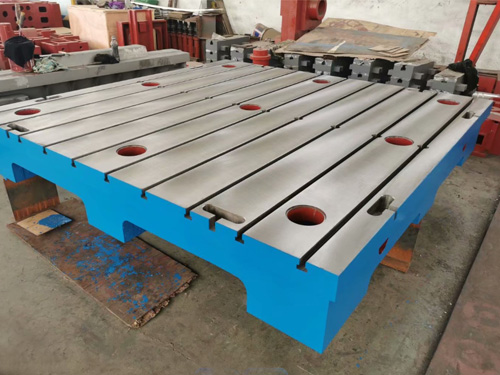

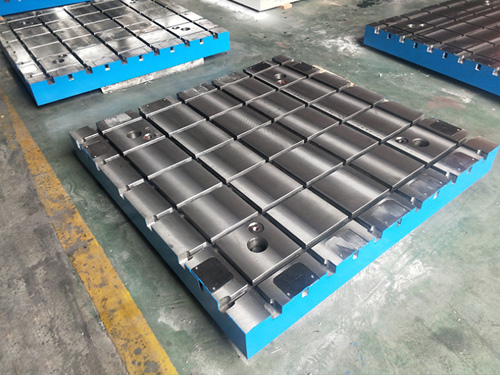

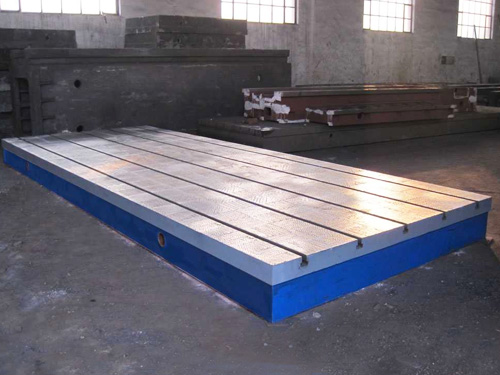

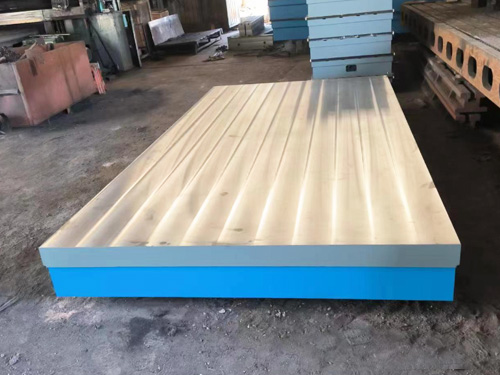

Cast Iron T-Slot Plate

Cast Iron T-Slot Plate is a basic tool for machining,testing,assembly and other fields.The following is a detailed introduction of it:

Structural features

Material:high strength cast iron is usually used,such as HT200,HT300,etc.These cast irons have good wear resistance,shock absorption and dimensional stability,which can ensure the platform to maintain high accuracy in the long-term use process.

T-shaped groove:there are several T-shaped grooves on the surface of the platform.The size and spacing of T-shaped grooves are determined according to the specification and use requirements of the platform.The function of T-shaped groove is to facilitate the installation of fixtures,positioning devices and workpieces.Various components can be quickly and accurately fixed on the platform through T-shaped bolts,which is convenient for various processing and assembly operations.

Working face:the working face of the platform is precision machined,with high flatness accuracy,generally reaching±0.05mm/m-±0.01mm/m or even higher,and the surface roughness is usually between ra0.8-ra3.2μm,which can provide accurate positioning and measurement reference for the workpiece.

application area

Machining:in the machining workshop,the cast iron T-slot platform is often used as an extension of the machine tool workbench or as an independent processing platform.The workpiece can be directly installed on the platform,and the T-slot is used for positioning and clamping,milling,boring,drilling and other processing operations to ensure the processing accuracy and the position accuracy between the workpiece.

Detection and inspection:as the measurement reference platform,it is used to detect the dimensional accuracy,shape accuracy and position accuracy of the workpiece.Install measuring tools such as dial indicator and dial indicator on the platform,and judge whether the workpiece meets the design requirements by measuring the workpiece.In addition,it can also be used to calibrate measuring tools and instruments to ensure the accuracy of measuring tools.

Assembly and debugging:during product assembly,the cast iron T-groove platform can be used as an assembly platform.Each part is placed on the platform according to the design requirements,and the T-groove is used for positioning and fixing to facilitate the assembly,commissioning and inspection of parts and ensure the assembly quality of products.
