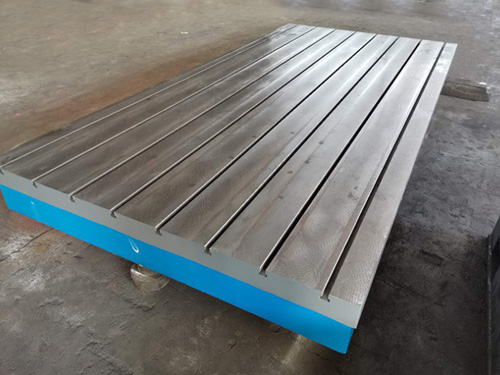

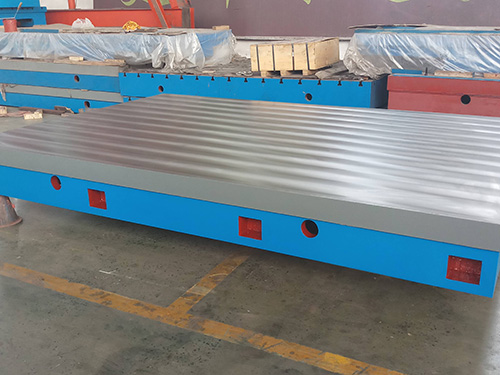

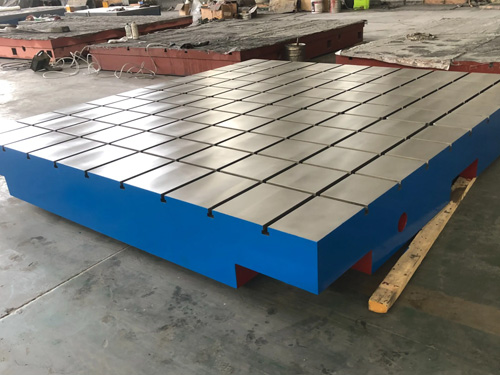

T Slot Cast Iron Surface Plate

T Slot Cast Iron Surface Plate is made of HT250 material,and the overall dimensions of the T-slot workbench can be customized according to customer requirements(mm).

T-groove platform the T-groove flat plate is provided with T-groove.The function of T-groove is to fix the workpiece with bolts(composition:head and screw)and screws to facilitate welding and assembly.The size of T-groove should be determined according to the size of bolts used.The size of T-groove is generally customized according to customer needs.

T Slot Cast Iron Surface Plate the T-groove flat plate is provided with a T-groove.The function of the T-groove is to fix the workpiece with bolts(composition:head and screw)and screws to facilitate welding and assembly.The size of the T-groove should be determined according to the size of the bolts used.The size of the T-groove is generally customized according to the needs of customers.The methods of our company to process the customized T-groove platform are roughly as follows

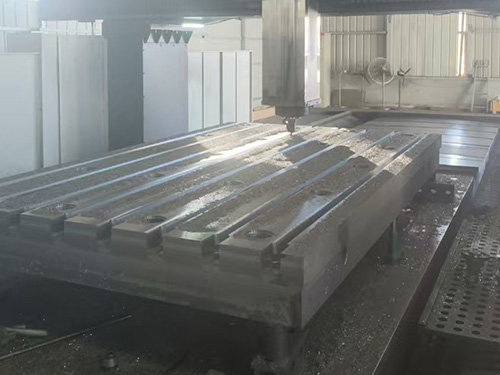

1.Align and clamp the flat plate according to the processing line drawn on the end face and upper plane of the cast iron platform.

2.Use a slotting knife to plane out the right angle groove.T-groove platform,also known as T-groove flat plate,is a cast iron flat plate with T-groove on the surface,which is used to assemble and debug the cast iron platform measuring tools of mechanical equipment.The cast iron T-groove platform produced by our company is as strict as the scribing platform in accordance with the relevant national industrial standards,and cast iron casting is used,which is not only stable in accuracy,but also reliable.If the T-shaped groove is small and the accuracy(precision)of the top right angle groove is not high,it can be cut out in one cutting to make its width equal to the width of the T-shaped groove notch.If the T-shaped groove is small and the requirements for notch accuracy are relatively high or the T-shaped groove is large,the right angle groove shall be planed twice by rough planing and fine planing.

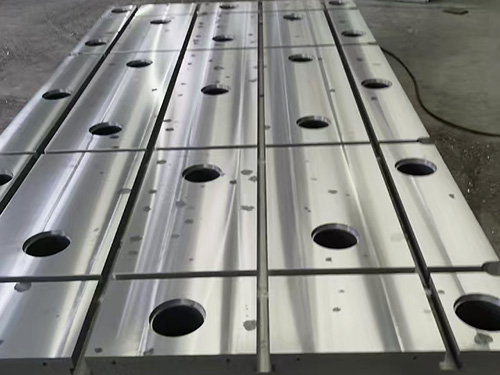

3.Plane the left and right grooves on the side.The working surface of T-groove platform generally has T-groove,and long holes and round holes can also be processed according to requirements.This T-groove platform is made of high-quality pure iron.The T-shaped groove platform produced by our company is widely used in the assembly,debugging,welding and riveting of power mechanical equipment.This product has a T-shaped groove on the surface,which can fix mechanical equipment.Before processing,check whether the cutting edge of the elbow cutter is perpendicular to the top surface of the cast iron plate with a cast iron square or cast iron square.If not,readjust the cutter untilu is vertical.Then use the elbow cutter to plane the grooves on the left and right sides respectively.

4.Chamfer.Chamfer with two pointed planers with main deflection angles of 45°.

Application scope of T Slot Cast Iron Surface Plate:

It is applied to the assembly and debugging of power machinery and equipment.The surface is provided with T-shaped groove,which can fix power machinery and equipment.The assembly platform with large requirements can be assembled and used.It can also be used for various inspection work.The reference plane for precision measurement is used for the mechanical inspection and measurement of machine tools.It is also used to check the dimensional accuracy or behavior deviation of parts and draw lines.The T-shaped groove workbench is also a basic tool in mechanical manufacturing.

The material of T Slot Cast Iron Surface Plate is HT250,and the hardness of working surface is hb170-240.The castings are treated twice(artificial annealing 600°-700°and natural aging 2-8 years),so that the accuracy of the T-slot worktable is stable and the performance is good.
