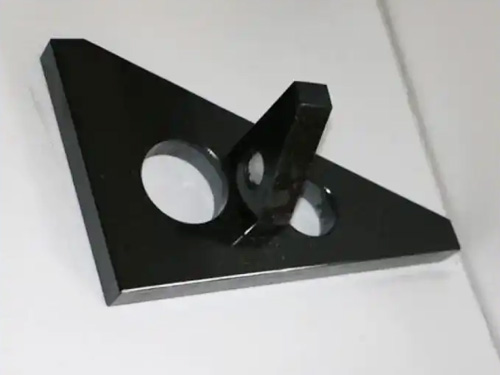

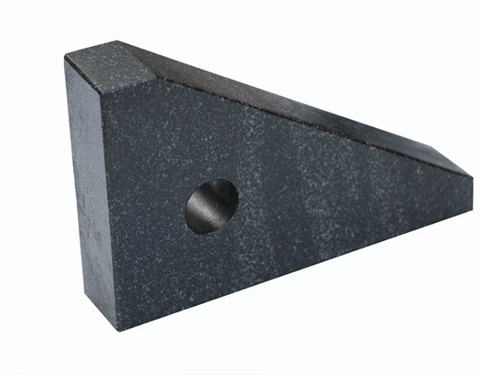

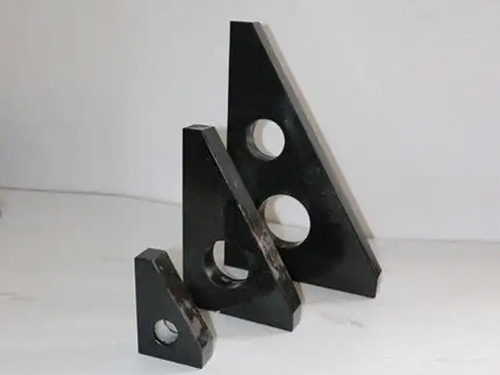

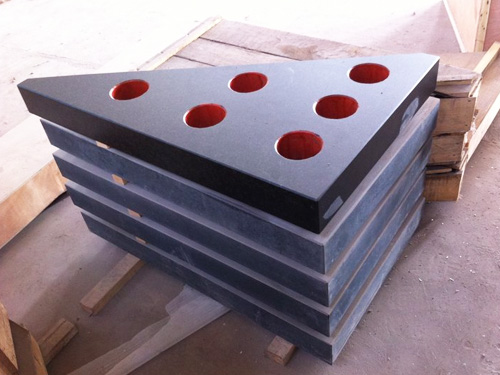

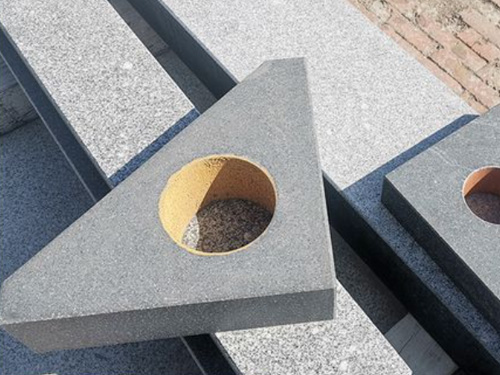

Granite Measuring Tool Marble Triangular Ruler

Granite Measuring Tool Marble Triangular Ruler are precision measuring tools.The following are their usage methods and precautions:

Usage

Preparation before measurement:First,wipe the measuring surface of the triangle ruler and the object being measured clean,remove dust,oil stains and other impurities,ensure that the measuring surface is flat and smooth,so as not to affect the measurement accuracy.

Angle measurement:Align the corresponding angle edge of the triangular ruler with the two sides of the measured angle,so that the vertex of the triangular ruler coincides with the vertex of the measured angle.Then observe whether there is a gap between the triangular ruler and the measured angle.If the gap is uniform and small,it indicates that the measured angle matches the angle of the triangular ruler;If there is a large gap,the gap size can be measured using tools such as a feeler gauge to estimate the deviation between the measured angle and the standard angle.

Straightness measurement:Align the straight edge of the triangular ruler with the measured straight line and observe whether there is a gap between the two.If there are no gaps or the gaps are extremely small,it indicates that the straightness of the measured line is good;If the gap is large,it indicates that the measured line has a certain degree of curvature or straightness,and a feeler gauge can be used to measure the gap size to evaluate the straightness error.

Verticality measurement:Place one right angled edge of a triangular ruler on the measured plane,so that the other right angled edge is in contact with the measured line or plane.If the measured line or plane is perfectly aligned with the right angle edge of the triangular ruler,it indicates that the measured line is perpendicular to the plane;If there is a gap,the verticality error can be determined by measuring the gap.

precautions

Handle with care:Granite measuring tools and marble triangular rulers have a hard but brittle texture.During use,handling,and storage,collision and falling should be avoided to prevent damage to the measuring surface or edge of the triangular ruler,such as breakage or cracks,which may affect measurement accuracy.

Avoid corrosion:Although granite has a certain degree of corrosion resistance,it is still necessary to avoid contact with corrosive chemicals such as strong acids and alkalis to prevent damage to the surface of the triangular ruler.If accidentally contaminated with chemicals,rinse immediately with clean water and wipe dry.

Regular cleaning:After use,the surface of the triangular ruler should be wiped with a clean soft cloth in a timely manner to remove dust,oil stains,and other stains.After long-term use,if there are difficult to wipe stains on the surface,mild cleaning agents can be used for cleaning,but cleaning agents containing abrasives should be avoided to avoid scratching the surface.

Proper storage:When not in use,the triangular ruler should be placed in a dedicated measuring tool box or fixed storage rack to avoid deformation under pressure.The storage environment should be kept dry and ventilated to prevent moisture,rust,or deformation caused by humidity changes.

Regular calibration:In order to ensure measurement accuracy,granite measuring tools and marble triangular rulers should be regularly sent to the metrology department for calibration.The calibration cycle is generally determined by the frequency of use and accuracy requirements,usually one or six months.In the process of use,if abnormal measurement results or collision of the triangular ruler are found,calibration or inspection should be carried out in a timely manner.
