3D Modular Clamping System

A 3D modular clamping system is a highly flexible and efficient device used in welding and metal processing,mainly composed of a modular tabletop and various clamping components.Here is a detailed introduction:

Structural Characteristics

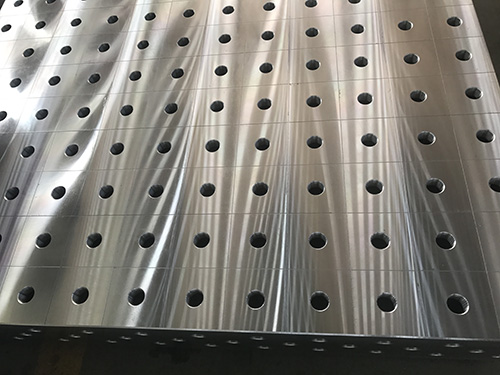

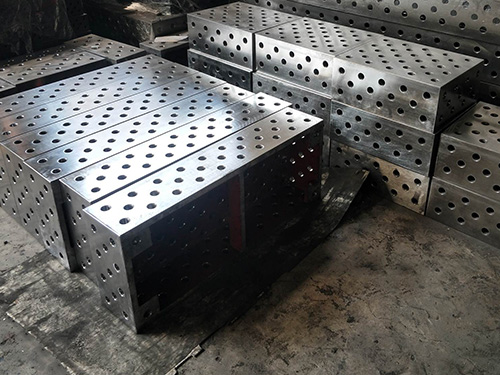

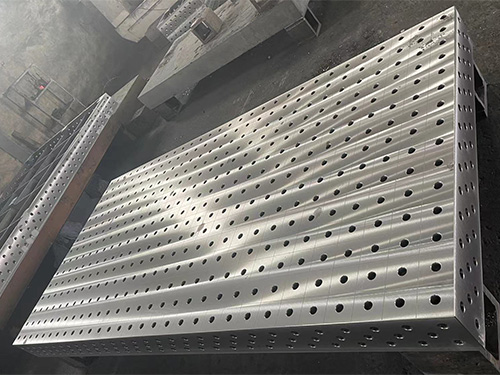

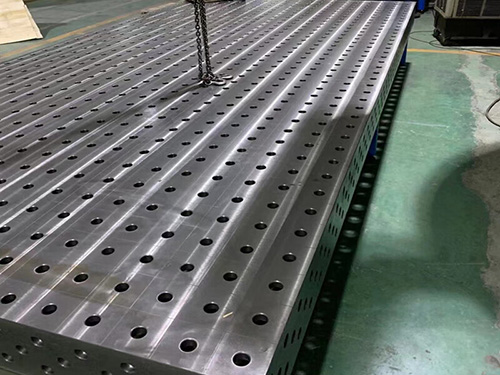

Modular Tabletop:Usually,it adopts a grid-like or T-slot-like design.For example,some have a high-precision hole grid system on five working surfaces,with holes distributed at specific intervals,which can be used to install various clamping components.Others are equipped with T-slots,allowing clamping accessories to be slid and fixed at any position on the tabletop to meet different workpiece clamping requirements.

Diverse Clamping Components:Include clamping columns,arms,angle supports,stop elements,etc.These components can be combined in different ways to firmly clamp workpieces of various shapes and sizes.For instance,the clamping columns can be adjusted in height and angle,and the clamping arms can be extended or retracted to adapt to workpieces of different dimensions.

Advantages

High Flexibility:It can be freely combined and reconfigured according to different workpiece shapes,sizes,and welding process requirements,enabling the clamping of various complex-shaped workpieces.It is widely applicable in different fields such as automotive manufacturing,aerospace,and machinery processing.

Improved Work Efficiency:The quick-connect mechanism of the modular design allows for rapid installation and removal of clamping components,reducing the setup time for welding operations.It also improves the accuracy of workpiece positioning,reduces the occurrence of welding errors,and thus shortens the overall welding cycle.

High Repeatability:It has a relatively high repeatability accuracy.Once the clamping position and method for a certain workpiece are determined,the same clamping effect can be achieved every time,which is beneficial for ensuring the consistency of welding quality in batch production.

Application Scenarios

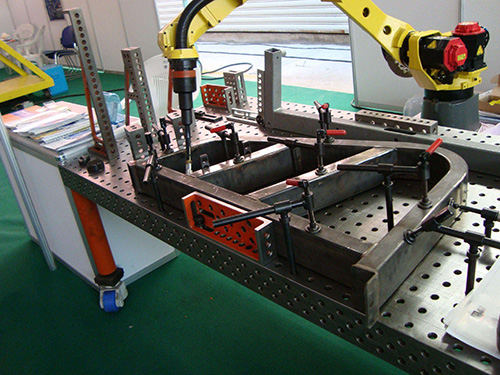

Welding Workshops:It is used to clamp workpieces during welding to ensure the stability and accuracy of the workpieces,helping to improve welding quality and efficiency.It is applicable to the welding of various metal materials,such as steel,aluminum,and copper.

Machining Workshops:In machining processes such as milling,drilling,and grinding,the D modular clamping system can be used to position and clamp workpieces to ensure the accuracy of machining.It can cooperate with machine tools such as CNC machining centers to complete the processing of complex-shaped parts.

Assembly Workshops:During the assembly of mechanical components,the system can be used to position and fix components to ensure the accuracy of assembly and improve the efficiency of the assembly process.
