3D Welding Bench

A 3D welding bench,also known as a D welding table or jig,is a specialized piece of equipment used in welding processes to provide a stable and precise platform for fabricating three-dimensional metal structures.Here is a detailed introduction:

Structure

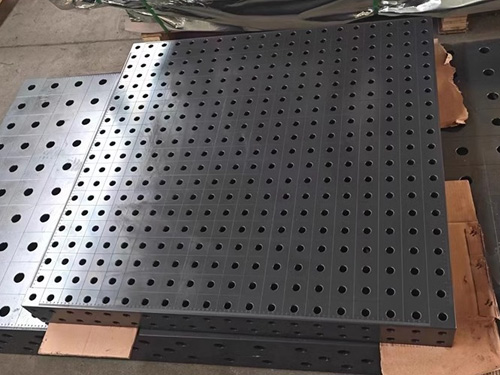

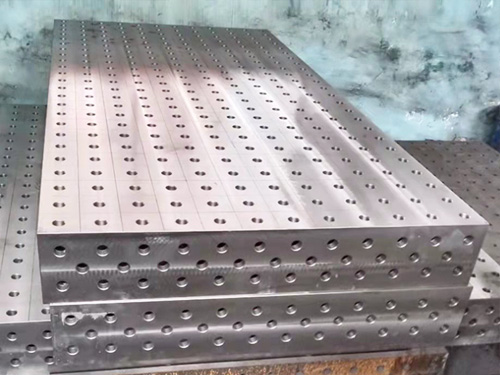

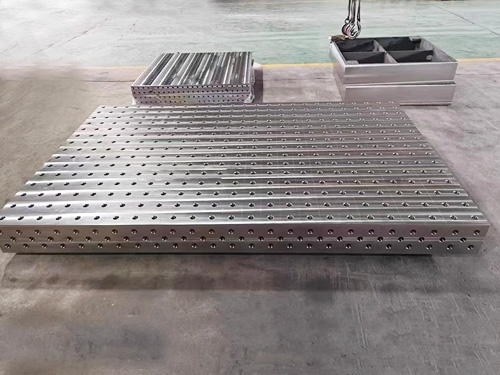

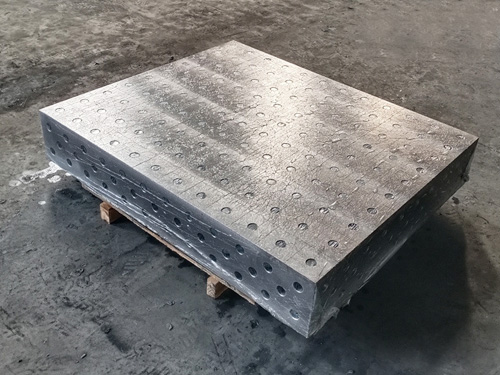

Bench Top:Usually made of high-quality steel or cast iron,the bench top is precisely machined to be flat and smooth.It is often engraved with a grid of holes or T-slots.The holes are typically of a standard size,such as 16mm or 28mm in diameter,and are evenly distributed at intervals of 50mm or 100mm.The T-slots are used to install various clamping and positioning devices.

Support Frame:The bench top is supported by a robust frame structure.This frame is designed to bear the weight of the workpieces and the forces generated during welding without significant deformation.The legs of the support frame are usually adjustable to ensure the leveling of the bench top on uneven floors.Some advanced models may be equipped with shock-absorbing devices to minimize the impact of vibrations on the welding process.

Function

Accurate Positioning:The grid of holes and T-slots on the bench top serves as a positioning system.Special positioning pins or fixtures can be inserted into these holes or slots to precisely position the workpieces in the X,Y,and Z axes.This ensures that the workpieces are in the correct position relative to each other before welding,improving the accuracy of the weld joints.

Firm Clamping:Various clamping devices,such as clamps,bolts,and nuts,are used in combination with the holes and T-slots to firmly clamp the workpieces to the bench top.This prevents the workpieces from moving or vibrating during welding,which is crucial for maintaining the quality of the welds.

Versatile Adjustability:Many D welding benches are equipped with adjustable features.For example,some benches have movable magnetic clamping blocks that can be easily adjusted to different positions on the bench top to hold workpieces of various shapes and sizes.There may also be adjustable angle-setting devices,allowing the bench top or specific workpiece-holding fixtures to be tilted at different angles to meet the requirements of different welding positions.

Applications

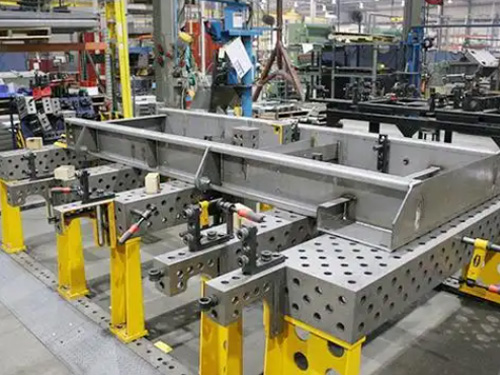

Automotive Industry:In the production of automobile bodies,D welding benches are used for assembling and welding various components,such as car frames,doors,and fenders.They ensure the accurate positioning and welding of these components,meeting the high-quality requirements of automotive manufacturing.

Aerospace Industry:For manufacturing aircraft components,D welding benches are essential for ensuring the precision and quality of welded structures.They are used to weld complex aerospace parts with high accuracy,meeting the strict standards of the aerospace industry for dimensional accuracy and structural strength.

Machinery Manufacturing:In the machinery manufacturing industry,D welding benches are used for welding machine frames,tooling fixtures,and other components.They help to improve the manufacturing accuracy and quality of machinery.

Metal Fabrication:In metal fabrication workshops,D welding benches are used for a variety of tasks,including the welding of metal frames,staircases,and decorative metalworks.They provide a stable and precise platform for welding,facilitating the production of high-quality metal products.

Advantages

High Precision:The precise machining of the bench top and the use of standardized positioning and clamping elements ensure high-precision workpiece positioning,which is beneficial for achieving high-quality welds with accurate dimensions and good appearance.

Flexibility:The adjustable features of D welding benches make them suitable for a wide variety of welding tasks.They can adapt to different workpiece shapes,sizes,and welding positions,increasing the versatility of the welding workshop.

Improved Work Efficiency:With the help of D welding benches,the processes of workpiece positioning and clamping are simplified and accelerated,reducing the time required for setting up welding operations.This leads to increased work efficiency and higher productivity.

Enhanced Safety:The stable structure of the D welding bench and the reliable clamping of workpieces reduce the risk of workpiece movement or falling during welding,improving the safety of the welding operation.
