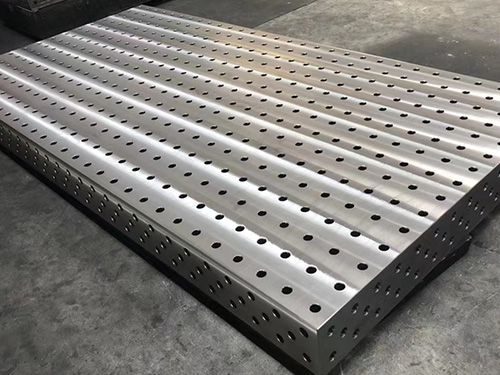

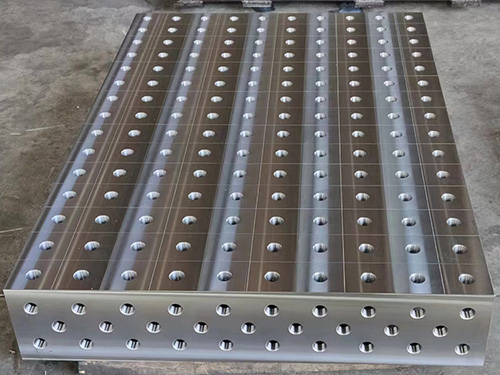

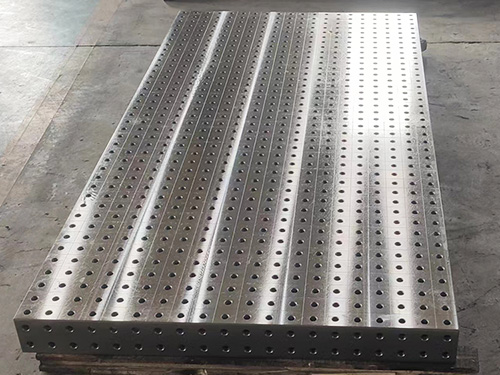

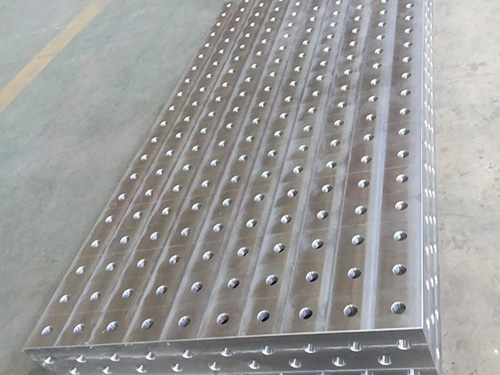

CNC Welding Table with Clamps

CNC Welding Table with Clamps is a high-end welding equipment that combines advanced CNC technology with practical fixture devices. It has unique advantages in the field of modern welding processing. Here is an introduction:

Numerical Control (CNC) Technology: This workbench is equipped with a CNC system that enables precise automation control. Through programming, operators can set various motion parameters of the workbench, such as movement speed, displacement, rotation angle, etc. For example, when welding complex shaped workpieces, the CNC system can control the worktable to move accurately according to a preset trajectory, ensuring the positional accuracy of the welded joint and the consistency of the welding quality. The CNC system also has the function of storing and calling multiple welding programs, making it easy to quickly switch between different welding tasks.

High precision positioning: Based on CNC technology, CNC welding worktable can achieve high-precision positioning. Its motion mechanism usually uses high-precision ball screws, linear guides and other components, combined with high-performance servo motors, with positioning accuracy reaching millimeter or even sub millimeter levels. This is crucial for welding workpieces that require precise welding positions, such as electronic components, precision mechanical parts, etc., which can effectively improve the accuracy and reliability of welding.

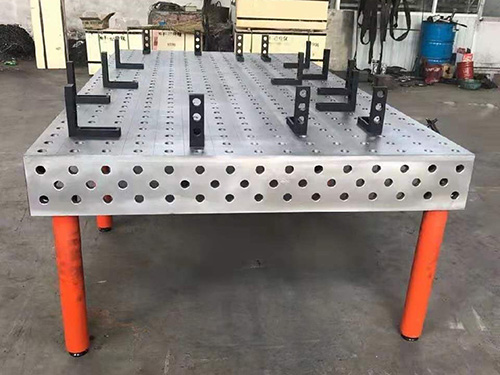

Fixture design: The equipped fixtures are a major feature of this workbench. There are various types of fixtures, including pneumatic fixtures, hydraulic fixtures, manual quick fixtures, etc., which can be selected and adjusted according to the shape, size, and material of different workpieces. These fixtures have strong clamping force, which can firmly fix the workpiece and prevent displacement or deformation during the welding process. For example, for irregularly shaped workpieces, adjustable combination fixtures can be used for precise positioning and clamping to ensure smooth welding processes.

Automated welding process: When CNC welding workbench is used in conjunction with automated welding equipment (such as robot welding machines), a highly automated welding process can be achieved. The CNC system can communicate and collaborate with welding equipment, control the start and stop of welding equipment, adjust welding parameters, and execute welding paths according to preset welding programs. During the welding process, the workbench can move the workpiece in the predetermined order and position, allowing the welding equipment to accurately weld each welding part, greatly improving welding efficiency and production efficiency.

Flexibility and universality: Although CNC welding worktable has the characteristics of high precision and automation, it still has a certain degree of flexibility and universality. By replacing different fixtures and adjusting the CNC program, it is possible to adapt to the welding needs of various types of workpieces. Whether it's welding small precision parts or splicing large structural components, suitable solutions can be found on this workbench.

Application areas: This CNC welding workbench with fixtures is widely used in industries such as electronics, automotive manufacturing, aerospace, medical equipment, etc. that require high welding accuracy and automation. In the electronics industry, used for soldering small electronic components; In automobile manufacturing, it is used for welding body parts; In the aerospace field, it is used to manufacture high-precision aviation components, etc.
