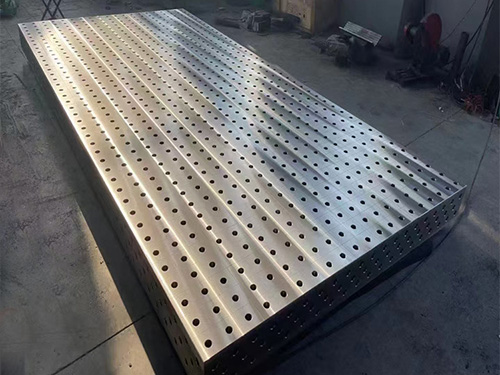

Flexible 3d Welding Fixture Platform

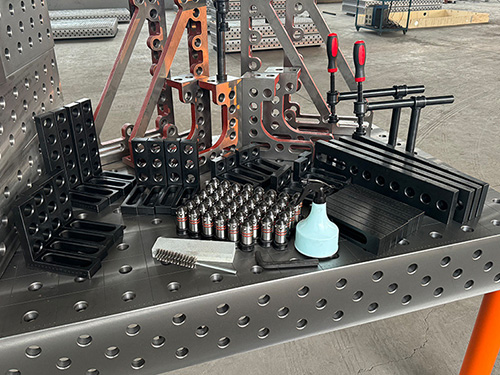

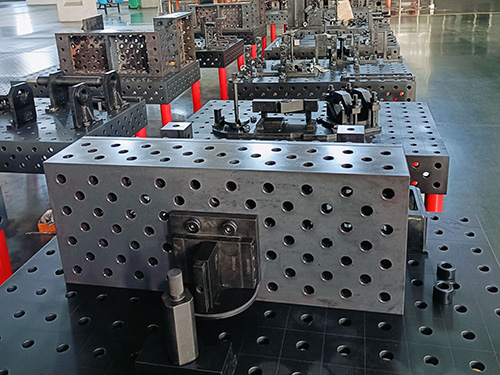

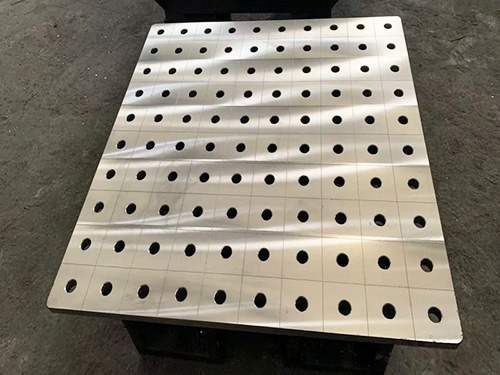

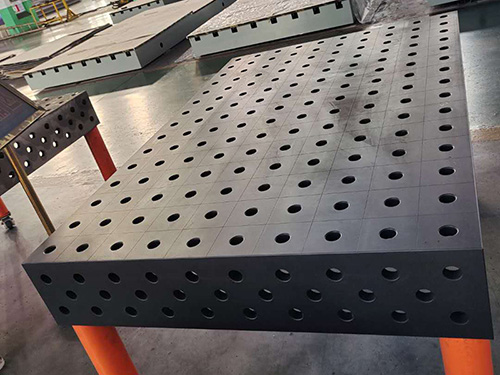

The Flexible 3d Welding Fixture Platform is a set of standardized,systematic and universal modules made in advance.The connection,fixation and pressing of all modules are carried out in the way of hole positioning and locking pin.The module and module can be adjusted according to the size change of the workpiece.The combination of the whole set of fixtures can realize the combination of three-dimensional space.The characteristics of this set of fixtures:it is ideal for welding products,so it is called three-dimensional flexible welding platform.This set of tooling is divided into two categories:the first is the 28 series,i.e.the aperture is￠28,and 100100 grid lines are distributed on the surface;The second is 16 series,i.e.aperture￠16,with 5050 grid lines distributed on the surface.The three-dimensional flexible welding platform is a multi angle rotating flexible welding workbench,which is composed of the platform,the platform,the hydraulic cylinder,the oil cylinder seat,the worm,the worm gear and the workbench.The platform is conical,and the lower end is 90 degrees tapered.The lower end is connected with the platform through the shaft.One end of the hydraulic cylinder is connected with the oil cylinder seat through the shaft,and the other end is connected with the lower end of the platform through the shaft.The worm is fixed in the platform,and the worm is connected with the workbench.The operating handle is connected with the turbine.

The drawing design of Flexible 3d Welding Fixture Platform should be designed according to the customer's needs.According to the national standard of welding platform gb/t22095-2008,it mainly includes the overall dimensions,bearing size,working face T-groove size,working face accuracy,etc.the larger the overall dimensions,the higher the overall height of the welding platform,such as 2000mm×4000mm welding platform,T-groove opening 36mm(using M30 fastening bolts),T-groove spacing 250mm,and bearing less than 20t;The total height can be designed as 300mm,the thickness of working face is 100mm,the thickness of stiffener plate is 30mm,and the inner height of stiffener plate including 50mm×50mm turning edge is 150mm-170mm;The overall weight of the flexible welding workbench is 7.5-8 tons.The flexible welding workbench is used for the welding and soldering of through-hole and surface mount components.The flexible welding workbench adopts high-power and long-life ceramic heater,and has closed-circuit feedback temperature control,so it can obtain high-speed and accurate welding.
