Three dimensional flexible steel welding tooling platform

A three-dimensional flexible steel welding tooling platform is a highly adaptable and efficient piece of equipment in the field of welding,especially beneficial for complex and diverse welding tasks.Here's a comprehensive overview of its features,benefits,and applications:

1.Structural Features

Steel Construction:Made primarily from high-quality steel materials,such as carbon steel or alloy steel,which offer excellent strength,durability,and resistance to deformation.The steel framework provides a robust foundation to support heavy workpieces and withstand the forces generated during welding operations.

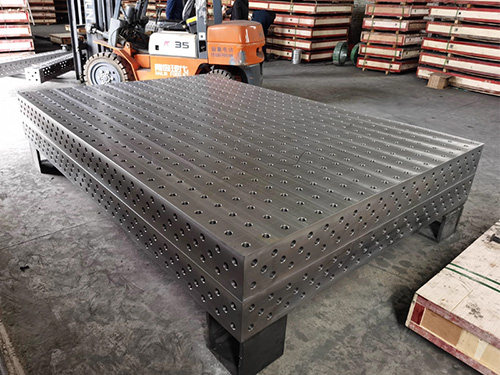

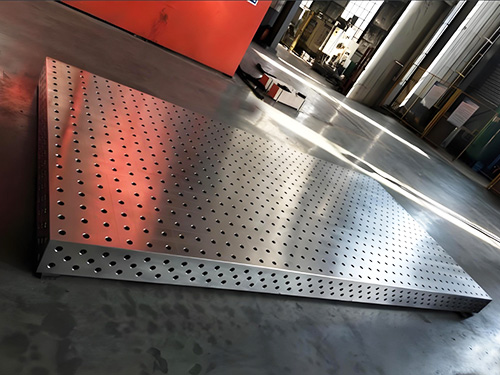

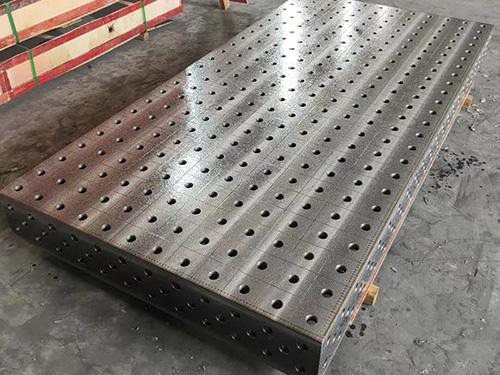

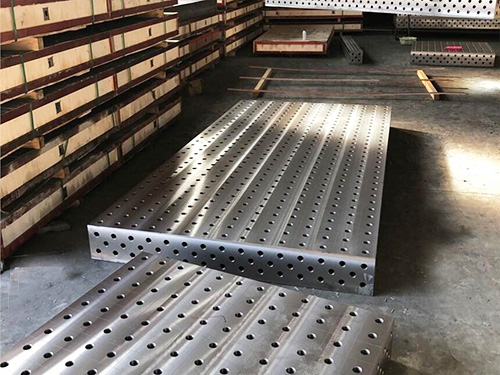

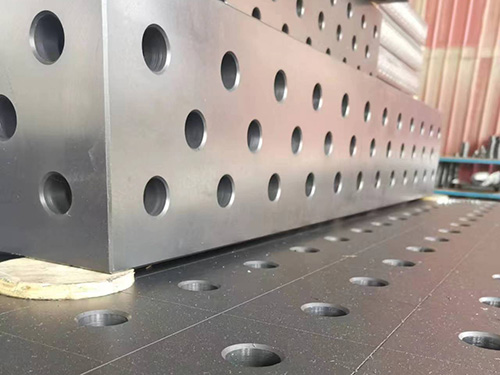

Modular Design:Consists of modular components that can be easily assembled,disassembled,and rearranged.The platform typically includes a base table with a grid of holes or T-slots on multiple surfaces(usually five sides:top,four sides).These holes or slots are precisely machined and evenly spaced,enabling the installation of various positioning and clamping elements.For example,the holes might be 16mm or 28mm in diameter,with a spacing of 50mm or 100mm.

Adjustable Elements:Incorporates adjustable components like height-adjustable legs,movable clamping arms,and angular positioning devices.The height-adjustable legs allow for leveling the platform on uneven floors and adapting to different working heights for operator comfort.Movable clamping arms can be positioned at various angles and locations on the platform to securely hold workpieces of different shapes and sizes.

2.Functionality

Precise Positioning:Enables accurate positioning of workpieces in three-dimensional space.Specialized positioning pins,blocks,and locators can be inserted into the holes or slots on the platform to define the exact location and orientation of the parts to be welded.This precision is crucial for ensuring the proper alignment of components,which in turn leads to high-quality welds and accurate final products.

Flexible Clamping:Offers a wide range of clamping options.Magnetic clamps,quick-release clamps,and screw clamps are commonly used and can be easily attached to the platform's holes or slots.This flexibility allows for the clamping of workpieces with different geometries and materials,from thin sheet metals to thick structural steels.

Adaptability to Different Welding Processes:Suitable for various welding processes,including MIG(Metal Inert Gas)welding,TIG(Tungsten Inert Gas)welding,and stick welding.The platform's design does not interfere with the welding equipment and provides a stable and accessible workspace for the welder,regardless of the specific welding technique employed.

.Benefits

Increased Efficiency:Reduces setup time for welding operations.The modular and adjustable nature of the platform allows for quick reconfiguration to accommodate different workpieces,eliminating the need for time-consuming custom fixtures for each new job.This results in faster turnaround times and higher productivity in the workshop.

Cost Savings:Eliminates the need to invest in multiple fixed welding fixtures for different projects.Instead,a single three-dimensional flexible steel welding tooling platform can be adapted to various tasks,saving costs associated with fixture design,manufacturing,and storage.Additionally,its durability and long service life contribute to overall cost-effectiveness.

Enhanced Quality:Ensures consistent and accurate positioning and clamping of workpieces,leading to improved weld quality.The reduced risk of misalignment and movement during welding minimizes the occurrence of welding defects such as cracks,porosity,and uneven bead formation.

Versatility:Can be used across multiple industries and applications.It is suitable for automotive manufacturing(e.g.,welding car body components),aerospace(welding aircraft parts),machinery fabrication,and general metalworking,making it a valuable asset in diverse manufacturing environments.

4.Applications

Automotive Industry:Used for welding various automotive components,including car frames,engine mounts,and suspension parts.The ability to precisely position and hold these parts during welding is essential for ensuring the safety and performance of the vehicles.

Aerospace Industry:Ideal for welding complex and high-precision aerospace components,such as aircraft wings,fuselage sections,and engine components.The platform's accuracy and stability help meet the stringent quality requirements of the aerospace sector.

Machinery Manufacturing:Employed in the production of machinery parts,such as machine tool frames,gears,and conveyor components.It enables the efficient welding of these parts,ensuring their proper fit and function in the final machinery assembly.

Shipbuilding:Useful for welding large-scale ship components,including hull sections,bulkheads,and deck structures.The platform's strength and adaptability make it suitable for handling the heavy and complex workpieces typical in shipbuilding.

In summary,a three-dimensional flexible steel welding tooling platform offers a combination of flexibility,precision,and durability,making it an indispensable tool in modern welding operations across multiple industries.
