Two dimensional flexible steel welding tooling platform

A two-dimensional flexible steel welding tooling platform is a practical and adaptable piece of equipment widely used in the welding industry.It provides a stable and flexible foundation for welding operations,facilitating the accurate positioning and clamping of workpieces in a two-dimensional plane.Here is a detailed introduction:

1.Structural Design

Steel Construction:Made primarily from high-quality steel materials,such as carbon steel or alloy steel,the platform benefits from the inherent strength and durability of steel.Carbon steel offers good weldability and cost-effectiveness,making it a common choice for general-purpose platforms.Alloy steel,on the other hand,provides enhanced mechanical properties,such as higher strength and wear resistance,which are suitable for more demanding applications.The steel frame of the platform is typically fabricated through welding or bolting,ensuring a robust and stable structure.

Flat Tabletop:The core of the platform is a flat tabletop,which serves as the working surface for welding.The tabletop is precisely machined to ensure a high degree of flatness,which is crucial for accurate workpiece positioning.It can range in size from small benchtop models suitable for light-duty tasks to large-scale tables for handling oversized workpieces.The surface of the tabletop may be left plain or treated with a coating,such as anti-rust paint or a wear-resistant layer,to protect it from damage during welding operations.

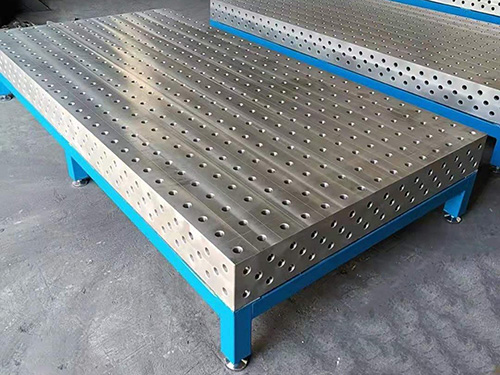

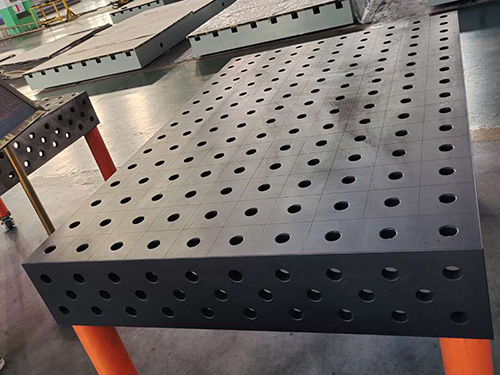

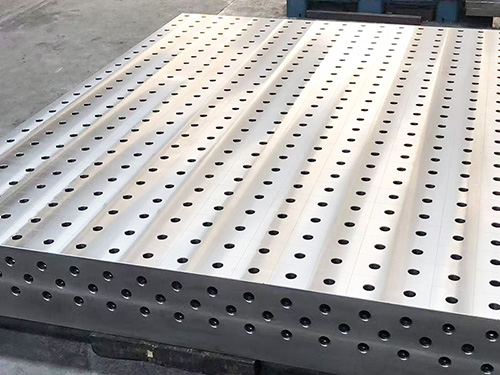

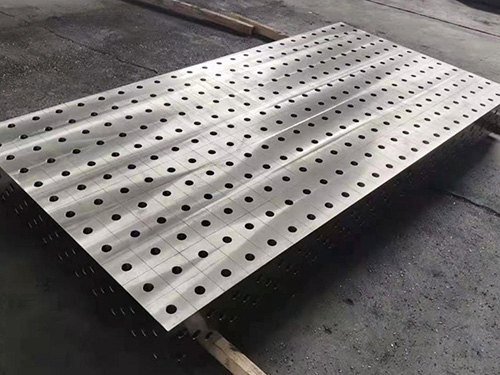

Grid or Slot Pattern:To enhance its flexibility,the tabletop often features a grid of holes or a series of T-slots.The holes are usually evenly spaced,with standard diameters that allow for the insertion of various positioning pins,bolts,and clamping devices.T-slots,on the other hand,provide a channel into which T-bolts can be inserted,enabling the attachment of clamps,stops,and other fixtures.This grid or slot pattern allows for the quick and easy adjustment of workpiece position and orientation,as well as the installation of different types of tooling.

2.Functional Features

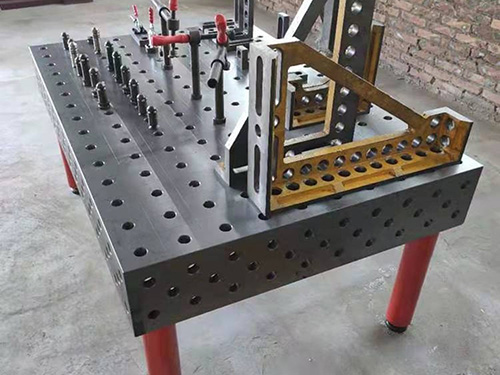

Positioning and Clamping:The two-dimensional flexible steel welding tooling platform enables precise positioning of workpieces in the X and Y axes.By using positioning pins inserted into the holes or T-bolts in the slots,workpieces can be accurately located relative to each other.A variety of clamping devices,such as quick-release clamps,screw-down clamps,and magnetic clamps,can be attached to the platform to hold the workpieces firmly in place during welding.This ensures that the workpieces do not move or shift,which is essential for achieving high-quality welds.

Adaptability:One of the key advantages of this type of platform is its adaptability to different welding tasks.The modular nature of the grid or slot system allows for the easy installation and removal of fixtures,enabling the platform to be quickly reconfigured for different workpiece shapes and sizes.For example,a simple V-block can be attached to the platform to hold round workpieces,while a custom-made fixture can be used for more complex geometries.This adaptability reduces the need for dedicated tooling for each individual welding job,saving time and cost.

Workpiece Support:In addition to positioning and clamping,the platform also provides support for the workpieces during welding.The flat and stable tabletop distributes the weight of the workpieces evenly,preventing deformation and ensuring that the welds are of consistent quality.Some platforms may also feature additional support elements,such as adjustable feet or leveling screws,which allow the platform to be adjusted to different floor surfaces and working heights.

.Advantages

Cost-Effective:Compared to three-dimensional or more complex welding tooling systems,a two-dimensional flexible steel welding tooling platform is generally more cost-effective.Its simpler design and construction result in lower production costs,making it an attractive option for small-to medium-sized businesses or for applications where a high degree of flexibility is required without the need for extensive three-dimensional positioning capabilities.

Easy to Use:The platform's straightforward design and intuitive operation make it easy for welders of all skill levels to use.The grid or slot pattern on the tabletop provides a clear reference for workpiece positioning,and the clamping devices are easy to install and operate.This ease of use reduces the learning curve for new users and increases productivity in the welding workshop.

Space-Saving:The two-dimensional nature of the platform means that it requires less floor space compared to larger three-dimensional systems.This makes it suitable for workshops with limited space or for applications where portability is a requirement.Some smaller models can even be easily moved around the workshop,allowing for greater flexibility in workflow.

4.Applications

Sheet Metal Welding:The two-dimensional flexible steel welding tooling platform is particularly well-suited for sheet metal welding applications.It can be used to hold and position sheet metal parts for tasks such as fabricating boxes,enclosures,and brackets.The precise positioning and clamping capabilities of the platform ensure that the sheet metal parts are aligned correctly,resulting in high-quality welds with minimal distortion.

General Metal Fabrication:In general metal fabrication workshops,the platform can be used for a wide range of welding tasks,including the assembly of metal frames,the joining of structural components,and the repair of metal parts.Its adaptability allows it to handle different types of metal materials,from mild steel to stainless steel,and its robust construction ensures that it can withstand the rigors of heavy-duty welding operations.

Prototyping and Small-Batch Production:For prototyping and small-batch production,where the need for flexibility and quick setup changes is crucial,the two-dimensional flexible steel welding tooling platform offers a practical solution.It allows designers and fabricators to quickly build and test prototypes,as well as to produce small quantities of custom-made parts without the need for expensive dedicated tooling.

In conclusion,a two-dimensional flexible steel welding tooling platform is a valuable asset in the welding industry.Its simple yet effective design,combined with its flexibility and cost-effectiveness,makes it a popular choice for a wide range of welding applications.Whether used in sheet metal welding,general metal fabrication,or prototyping,this type of platform provides a stable and reliable foundation for achieving high-quality welds efficiently.
