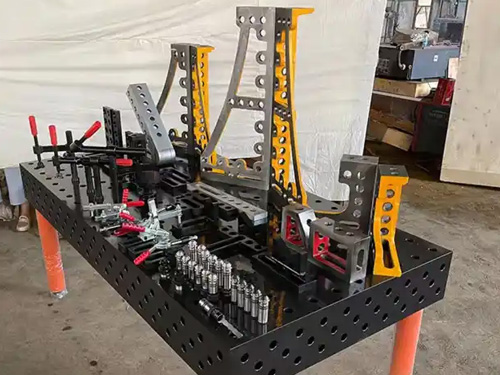

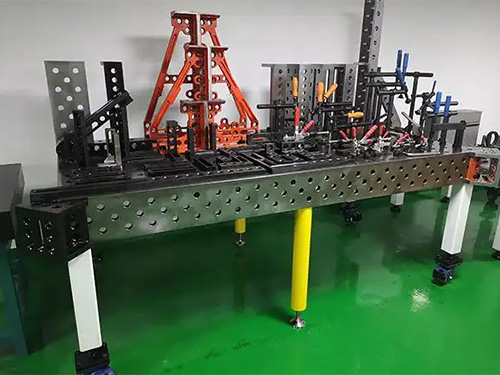

Welding Table for Robotic Welding

The welding Table for Robotic Welding is a core equipment designed specifically for automated welding processes. With precise structure, intelligent functions, and excellent stability, it provides an ideal working platform for robot welding systems, greatly improving welding efficiency and quality consistency, and helping the manufacturing industry move towards intelligent production.

High precision positioning ensures precise and error free welding

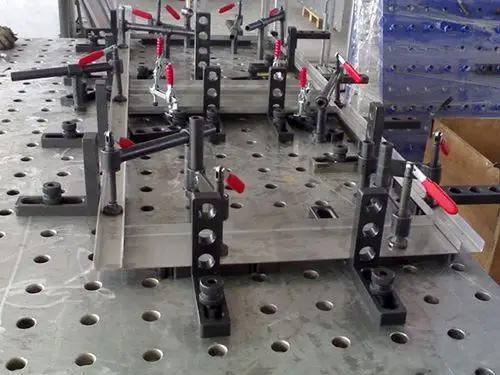

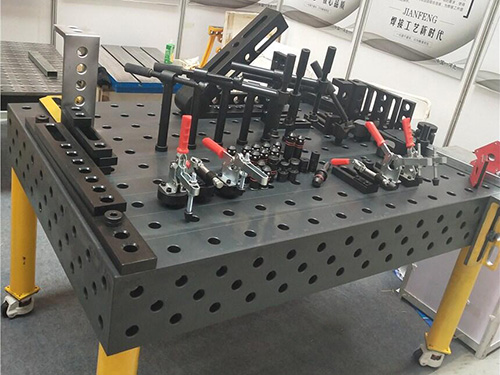

The surface of the welding table adopts micrometer level processing technology, with flatness error controlled within ± 0.02mm. Combined with high-precision positioning hole array and T-shaped groove grid system, it can achieve precise docking between the robot end effector and the workpiece. By presetting positioning reference points and combining them with the quick locking function of automated fixtures, the repeated positioning accuracy of the workpiece can be controlled within ± 0.05mm, ensuring that the robot can achieve zero deviation operation even in complex welding paths, meeting the high-precision welding requirements of automotive parts, aerospace, and other industries.

Strong stability design, resistant to dynamic load impact

Adopting high-strength alloy steel frame and thickened welded tabletop, the structural design is optimized through finite element analysis, and can withstand concentrated loads of up to 5 tons. The combination of internal reinforcement ribs and shock absorbers effectively absorbs high-frequency vibrations and instantaneous impact forces generated during the robot welding process. Even under high-speed welding, multi-layer and multi pass welding and other working conditions, the platform can remain stable, avoiding welding defects caused by shaking and ensuring the reliability of welding quality.

Intelligent integration, seamless integration with automation systems

The welding table integrates automation interfaces and sensor modules, supporting integration with robot control systems PLC、 Seamless connection of visual inspection equipment, etc. Through preset communication protocols, collaborative operations between the welding table and the robot can be achieved, such as automatic adjustment of workpiece posture, triggering fixture opening and closing, etc. The built-in weighing sensor and displacement sensor monitor the real-time status of the workpiece and the force on the platform. Combined with intelligent algorithms, it automatically optimizes welding parameters to improve production efficiency and process stability.

Flexible adaptation to meet diverse production needs

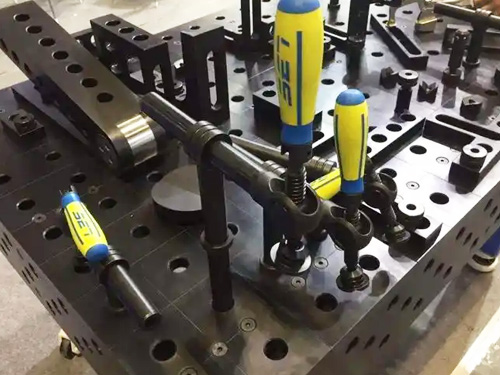

Modular design supports quick replacement of fixtures and positioning modules of different specifications, and can be adapted for welding various shapes and sizes of workpieces such as automotive chassis, engineering machinery structural components, and home appliance casings. The open platform layout facilitates flexible switching of robots between multiple workstations, meeting the flexible production needs of small batches and multiple varieties. In addition, customizable protective fences and safety grating systems ensure the efficient operation of robot welding operations while ensuring the safety of operators.

Choosing our robot welding dedicated welding station means choosing to elevate the precision, efficiency, and safety of automated welding to a whole new level. With professional design and intelligent functions, we help enterprises seize the opportunity in the wave of intelligent manufacturing, and achieve high-quality, high-efficiency, and high reliability in welding production!
